RackPortMain1

€698.00*

Available, delivery time: 30 days

Product number: 0599016

Product information "RackPortMain1"

RackPortMain1 - Versatile 1U MiniServer for System Monitoring and More

The RackPortMain1 is a compact 1U MiniServer, perfect for use as a central unit for Watchdog system monitoring.

Featuring a freely configurable Raspberry Pi 5 web server on a Linux basis, it offers countless application possibilities.
Use it to display WiFi power monitors, load cells, or any other external applications that respond to threshold exceedances or timers.

Thanks to the open operating system and the powerful Raspberry Pi 5, the possibilities are virtually limitless.

Key Features:

Raspberry Pi 5: Open Linux system as a foundation with pre-installed Docker containers
- HomeAssistant
- Node-Red
- InfluxDB
- Mosquitto
Extensive Communication Options: Web server, MQTT, ModBus, HTML, Bluetooth, etc.
High Operational Stability: SSD (Solid State Drive) for enhanced stability
Powerful Hardware:
- 25W power supply via GPIO port
- Internal 8-port 1Gbit switch
Versatile Connectivity:
- 1x Powercon True1 In
- 1x Powercon True1 Out
- 7x Ethernet (6x Front, 1x Rear)
- 3x USB
- 2x HDMI
- 2x Extension ports for custom purposes like DMX or GPIOs

Technical Specifications:

ARM Cortex 2.4GHz
8GB RAM
128GB SSD
230VAC, 30W

Additional Resources:

Find links to installation scripts and templates here:

WatchDog (current, voltage, power, CosPhi…)
Load cells
Temperature sensors
Wind sensors

HS Code:	85369010
Material:	Stahlblech
Maximum temperature:	55°C
Measurements:	440 x 290x 132 mm
Weight:	4kg

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

RackPoertMain Accessory Items

RPL16-PM-WD

The RPL16WD is an intelligent Wi-Fi power monitor for connection to 3-phase 16 amp supply lines.Voltage/current display for looping into 3-phase supply linesSpecific features:Measurement of all 3x outer conductorsWatchDog function for limit valuesPower measurement on each channelWeb server for monitoring and configurationWiFi, MQTT, Bluetooth...Performance measurement with data storageSmart schedules, scripting, webhooks3x digital display voltmeter ammeter, blue for each phaseVoltage measuring range: 60 V to 500 V, measuring accuracy ‎±1Current measurement: 0 to 100 A, measurement accuracy ±1Can be mounted quickly and easily with RigPort RPL-Clamps1x M10, 2x M4Shelly Pro 3EMConnections:1x CEE16-5p-In1x CEE16-5p-Through-Out1x EtherconDocumentation:manual Technical data:

€414.83*

RPL32-PM-WD

The RPL32WD is an intelligent Wi-Fi power monitor for connection to 3-phase 32 amp supply lines.Voltage/current display for looping into 3-phase supply linesSpecific features:Measurement of all 3x outer conductorsWatchDog function for limit valuesPower measurement on each channelWeb server for monitoring and configurationWiFi, MQTT, Bluetooth...Performance measurement with data storageSmart schedules, scripting, webhooks3x digital display voltmeter ammeter, blue for each phaseVoltage measuring range: 60 V to 500 V, measuring accuracy ‎±1Current measurement: 0 to 100 A, measurement accuracy ±1 Can be mounted quickly and easily with RigPort RPL-Clamps1x M10, 2x M4Shelly Pro 3EMConnections:1x CEE32-5p-In1x CEE32-5p-Through-Out1x EtherconDocumentation:manual Technical data:

€414.83*

New

RPL63-PM-WD

in kürze verfügbar in Shelly pro3EM oder Janitza UMG806 Variante!Bilder noch abweichend! Der RPL63WD ist ein intelligenter Wi-Fi Powermonitor zum Einklinken in 3-phasige 63 Ampere Versorgungsstränge. Spannung/Strom -Anzeige zum Einschleifen in 3-phasige Versorgungsstränge Spezifische Merkmale: Messung aller 3x Außenleiter WatchDog Funktion bei Grenzwerten Leistungsmessung auf jedem Kanal Webserver zum Monitoren und Konfigurieren Wi-Fi, MQTT, Bluetooth... Leistungsmessung mit Datenspeicherung Intelligente Zeitpläne, Skripting, Webhooks Ehternetanschluss, Servicesteckdose Powercon über RCBON-Leitermessung 3x Digitalanzeige Voltmeter Amperemeter, blau für jede Phase Spannungsmessbereich: 60 V bis 500 V, Messgenauigkeit ‎±1 Strommessung: 0 bis 125 A, Messgenauigkeit ±1 1x M10, 2x M4 Optional: SchaltausgangShelly Pro 3EMOptional Janitza UMG806 Anschlüsse: 1x CEE63-5p Out1x CEE63-5p In1x Ethercon1x Powercon über RCBO Dokumentation:user manual Technische Daten:

€749.70*

New

RPL63-PM-WD pro

in kürze verfügbar in Shelly pro3EM oder Janitza UMG806 Variante!Bilder noch abweichend! Der RPL63WD pro ist ein intelligenter Powermonitor höchster Präzision, zum Einklinken in 3-phasige 63 Ampere Versorgungsstränge. Spannung/Strom -Anzeige zum Einschleifen in 3-phasige Versorgungsstränge Spezifische Merkmale: Messung aller 3x Außenleiter WatchDog Funktion bei Grenzwerten Leistungsmessung auf jedem Kanal Webserver zum Monitoren und Konfigurieren Leistungsmessung mit Datenspeicherung Intelligente Zeitpläne, Skripting, Webhooks Ehternetanschluss, Servicesteckdose Powercon über RCBON-Leitermessung Digitalanzeige 1x M10, 2x M4 Optional: SchaltausgangJanitza UMG806 Anschlüsse: 1x CEE63-5p Out1x CEE63-5p In1x Ethercon1x Powercon über RCBO Dokumentation:user manual Technische Daten:

€1,316.14*

New

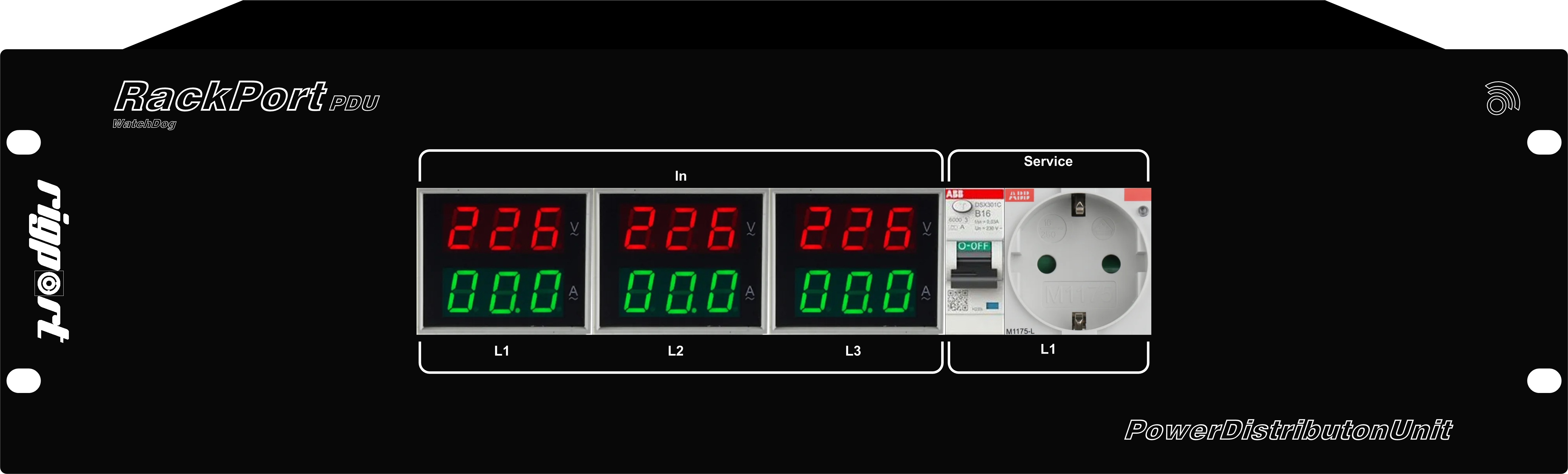

RPL125-PM-WD

in kürze verfügbar in Shelly pro3EM oder Janitza UMG806 Variante! Bilder noch abweichend! Der RPL125WD ist ein intelligenter Wi-Fi Powermonitor zum Einklinken in 3-phasige 125 Ampere Versorgungsstränge. Spannung/Strom -Anzeige zum Einschleifen in 3-phasige Versorgungsstränge Spezifische Merkmale: Messung aller 3x Außenleiter WatchDog Funktion bei Grenzwerten Leistungsmessung auf jedem Kanal Webserver zum Monitoren und Konfigurieren Wi-Fi, MQTT, Bluetooth... Leistungsmessung mit Datenspeicherung Intelligente Zeitpläne, Skripting, Webhooks EhternetanschlussServicesteckdose Powercon über RCBON-Leitermessung 3x Digitalanzeige Voltmeter Amperemeter, blau für jede Phase Spannungsmessbereich: 60 V bis 500 V, Messgenauigkeit ‎±1 Strommessung: 0 bis 100 A, Messgenauigkeit ±1 2x M10, Safety Ösen Optional: SchaltausgangShelly Pro 3EMOptional Janitza UMG806 Anschlüsse: 1x CEE125-5p Out1x CEE125-5p In1x Ethercon1x Powercon über RCBO Dokumentation:user manual Technische Daten:

€916.30*

New

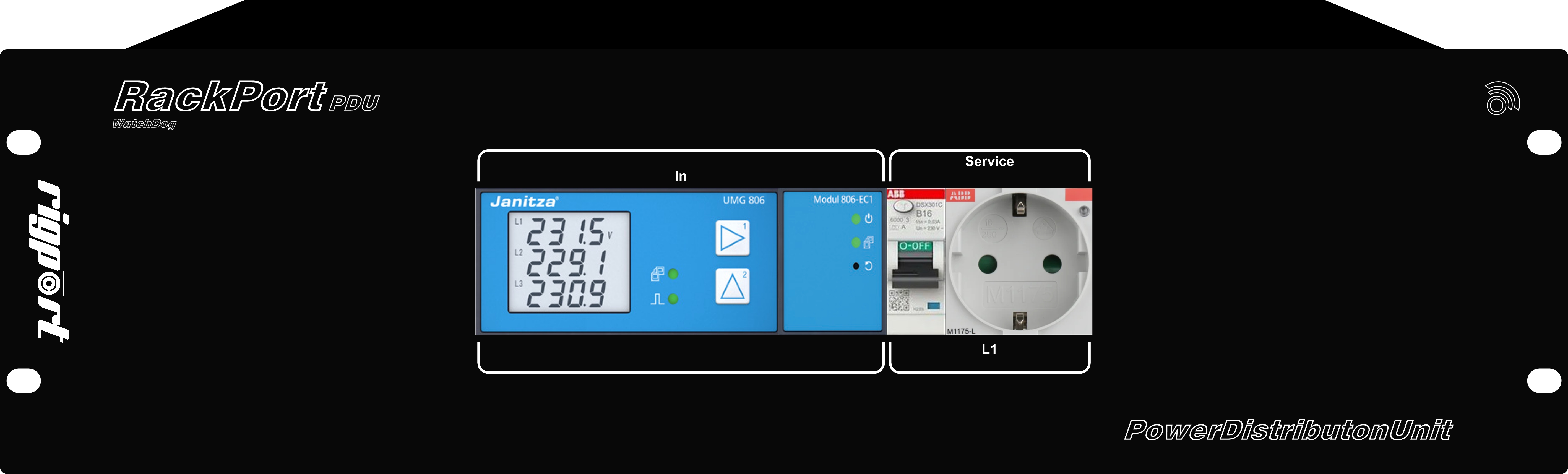

RPL125-PM-WD pro
