DrivePorts are bus-controlled 1-channel inline motor controllers directly on the chain hoist, e.g. in the truss.
It is therefore the logical continuation of the RigPort concept with logical, active elements to achieve the highest degree of flexibility and economy in event technology.
They are very space-saving, unobtrusive and flexible. You no longer need racks & Laka's and don't have to worry about channel limitations.
What makes our system even better is the simple integration into a main power line and the resulting short tap for the motor, which would add significantly to the weight and cabling effort of a normal central distribution system.
Fexible
Simple
The EtherPortXLR-M is a very compact Ethercon to 4x XLR Female BreakoutBox (Sound: Intput, DMX Output) for looping through.Ideal for extending or distributing four symmetrical audio signals via RJ45 as a multicore. e.g. stage microphone, delay speakers, DJ deck breakout, 1xEthercon In4 x XLR Male 1:1 (Sound: Input, DMX Output)1x Ethercon through out
The EtherPortXLR-M is a very compact Ethercon to 4x XLR Female BreakoutBox (Sound: Intput, DMX Output) for looping through.Ideal for extending or distributing four symmetrical audio signals via RJ45 as a multicore. e.g. stage microphone, delay speakers, DJ deck breakout, 1xEthercon In4 x XLR Male 1:1 (Sound: Input, DMX Output)1x Ethercon through out
The EtherPortXLR-M is a very compact Ethercon to 4x XLR Female BreakoutBox (Sound: Intput, DMX Output) for looping through.Ideal for extending or distributing four symmetrical audio signals via RJ45 as a multicore. e.g. stage microphone, delay speakers, DJ deck breakout, 1xEthercon In4 x XLR Male 1:1 (Sound: Input, DMX Output)1x Ethercon through out
The EtherPortXLR-M is a very compact Ethercon to 4x XLR Female BreakoutBox (Sound: Intput, DMX Output) for looping through.Ideal for extending or distributing four symmetrical audio signals via RJ45 as a multicore. e.g. stage microphone, delay speakers, DJ deck breakout, 1xEthercon In4 x XLR Male 1:1 (Sound: Input, DMX Output)1x Ethercon through out
The EtherPortXLR-M is a very compact Ethercon to 4x XLR Female BreakoutBox (Sound: Intput, DMX Output) for looping through.Ideal for extending or distributing four symmetrical audio signals via RJ45 as a multicore. e.g. stage microphone, delay speakers, DJ deck breakout, 1xEthercon In4 x XLR Male 1:1 (Sound: Input, DMX Output)1x Ethercon through out
The EtherPortXLR-M is a very compact Ethercon to 4x XLR Female BreakoutBox (Sound: Intput, DMX Output) for looping through.Ideal for extending or distributing four symmetrical audio signals via RJ45 as a multicore. e.g. stage microphone, delay speakers, DJ deck breakout, 1xEthercon In4 x XLR Male 1:1 (Sound: Input, DMX Output)1x Ethercon through out
The DrivePortNanoRPL16MK2 (2nd generation) is a smart 1-channel chain hoist control based on DMX/RDM for the traverse directly on the train.Specific features:1 channel DMX512/RDM motor controlHousing extremely robust and smallSafety integrated in the DMX cable (only one cable for DMX and safety)Stand-alone or integrated in the RigPort systemno lakas and controller racks (up to 70% smaller footprint: cables/weight/setup time and personnel, truck space)Maintenance-free in the rig: full control and monitoring of all parameters, with self-reset also via RDMflexible and modular (the system grows with the requirements):Can be expanded to include D8 / D8PLUS / C1 chain hoists/motorsSafety protection and safety bridging includedConnections: 1x CEE16-5p-In1x XLR5-in (DMX512)1x CEE16-5p4p-Out (Load)1x XLR5-out (DMX512)1x CEE16-5p-Through OutF Technical data:
Central DrivePort SW controlSpecific features:Scenic rides possibleConvenient direct control: individual and group ridesScene control (semi-automated via dead man)DMX512/RDM MasterWeb server based (flexibility of expansion and customization)Remote control via mobile devicessimple, intuitive parameterization of the systemData logger, log system for long-term recording of all weight data and relevant activitiesUser and rights managementGroup trip managementWindows or LinuxMQTT interface for integration into other higher-level systemsTechnical data:
The DrivePort16MK2 (2nd generation) is a smart 1-channel SIL3 Ple chain hoist control based on DMX/RDM for the traverse directly on the train.Specific features:1 channel DMX512/RDM motor control, SIL3 PleStand-alone or integrated in the RigPort systemno lakas and controller racks (up to 70% smaller footprint: cables/weight/setup time and personnel, truck space)Maintenance-free in the rig: full control and monitoring of all parameters, with self-reset also via RDMflexible and modular (the system grows with the requirements):Can be expanded to include D8 / D8PLUS / C1 chain hoists/motorsLoad measurement with optional plug-in load measuring cell / load measuring shackle (4..20mA)Distance measurement with distance/time measurement or with an optional plug-in distance measuring system / or for positioning without any additionalLimit switching via activated SW limit switches or optionally pluggable HW limit switchesOptional:Mobile SW Suite for full control of the DrivePort ecosystemConditional scenic trips already with D8PLUS trains, according to BGVC1/DGUVConnections: 1x CEE16-5p-In1x XLR5-in (DMX512)1x XLR5m (X-Endpos)1x XLR4f (X-Payload)1x XLR5m (X-Distance)1x CEE16-5p4p-Out (Load)1x XLR5-out (DMX512)1x CEE16-5p-Through Out Technical data:
The DrivePort32MK2 (2nd generation) is a smart 1-channel SIL3 PLe chain hoist control based on DMX/RDM for the traverse directly on the train.Specific features:1 channel DMX512/RDM motor control, SIL3 PleStand-alone or integrated in the RigPort systemno lakas and controller racks (up to 70% smaller footprint: cables/weight/setup time and personnel, truck space)Maintenance-free in the rig: full control and monitoring of all parameters, with self-reset also via RDMflexible and modular (the system grows with the requirements):Can be expanded to include D8 / D8PLUS / C1 chain hoists/motorsLoad measurement with optional plug-in load measuring cell / load measuring shackle (4..20mA)Distance measurement with distance/time measurement or with an optional plug-in distance measuring system / or for positioning without any additionalLimit switching via activated SW limit switches or optionally pluggable HW limit switchesOptional:Mobile SW Suite for full control of the DrivePort ecosystemConditional scenic trips already with D8PLUS trains, according to BGVC1/DGUVConnections: 1x CEE32-5p-In1x XLR5-in (DMX512)1x XLR5m (X-Endpos)1x XLR4f (X-Payload)1x XLR5m (X-Distance)1x CEE16-5p4p-Out (Load)1x XLR5-out (DMX512)1x CEE32-5p-Through Out Technical data:
Mechanical-electrical limit switch with lever operation and small roller, including 1m cableSpecific features:Various designs possibleConnections: 5 pin XLR connector female Technical data:
The DrivePortNanoRPL16MK2 (2nd generation) is a smart 1-channel chain hoist control based on DMX/RDM for the traverse directly on the train.Specific features:1 channel DMX512/RDM motor controlHousing extremely robust and smallSafety integrated in the DMX cable (only one cable for DMX and safety)Stand-alone or integrated in the RigPort systemno lakas and controller racks (up to 70% smaller footprint: cables/weight/setup time and personnel, truck space)Maintenance-free in the rig: full control and monitoring of all parameters, with self-reset also via RDMflexible and modular (the system grows with the requirements):Can be expanded to include D8 / D8PLUS / C1 chain hoists/motorsSafety protection and safety bridging includedConnections: 1x CEE16-5p-In1x XLR5-in (DMX512)1x CEE16-5p4p-Out (Load)1x XLR5-out (DMX512)1x CEE16-5p-Through OutF Technical data:
The DrivePortNanoRPL32MK2 (2nd generation) is a smart 1-channel chain hoist control based on DMX/RDM for the traverse directly on the train.Specific features:1 channel DMX512/RDM motor controlHousing extremely robust and smallSafety integrated in the DMX cable (only one cable for DMX and safety)Stand-alone or integrated in the RigPort systemno lakas and controller racks (up to 70% smaller footprint: cables/weight/setup time and personnel, truck space)Maintenance-free in the rig: full control and monitoring of all parameters, with self-reset also via RDMflexible and modular (the system grows with the requirements):Can be expanded to include D8 / D8PLUS / C1 chain hoists/motorsSafety protection and safety bridging includedConnections: 1x CEE32-5p-In1x XLR5-in (DMX512)1x CEE16-5p4p-Out (Load)1x XLR5-out (DMX512)1x CEE32-5p-Through OutTechnical data:

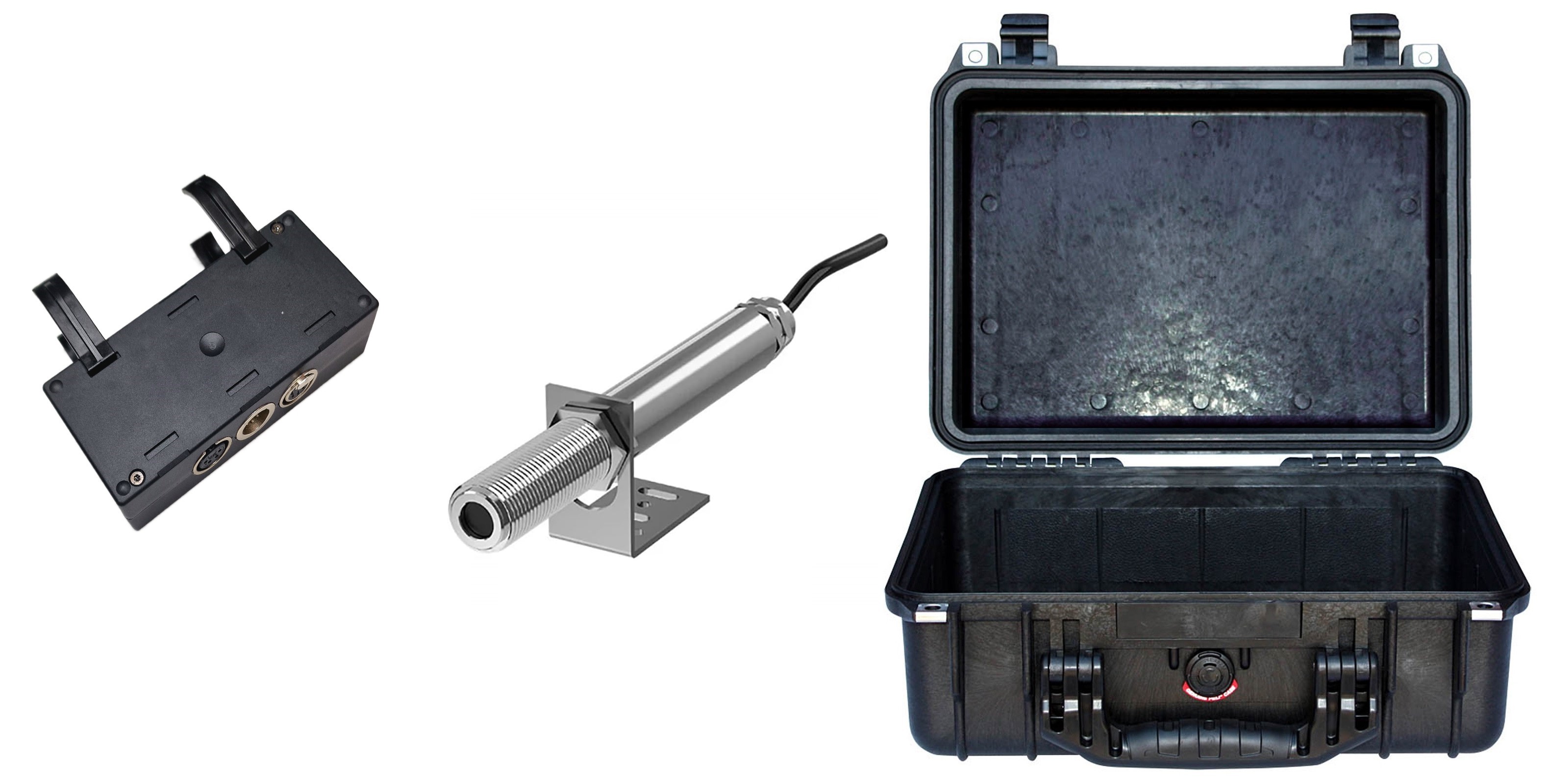

Distance measuring light barrier with 1m cable for measuring the distance of chain links, for exampleSpecific features:Various designs possibleConnections: Pol XLR connector male Technical data:
Enabling button SIL3, with Rigport40 housing including power supply and 5m cableSpecific features:Security control unit including power supply and 5m cableEmergency stop, SIL3Panic functionKey switchVibration during activityDirect group ride buttonConnections: 1x Powercon-In(1x XLR6 In <->Out)1x Speakon-OutTechnical data:
Automatic vigilance device SIL3Specific features:Enabling button with status LEDmax 4 DrivePorts simultaneouslyNotHalt SIL3Group rideIntegrated power supply (90-260VAC)Connections: 1x Powercon-T1-In1x Speakon-OutTechnical data:
Safety control device in combination with a DMX512 control device to control all DrivePorts via DMX+SafetySpecific features:Enabling button with status LEDNotHalt SIL3max 25 DrivePorts simultaneously (depending on the power supply)external power supply (24VDC 1Amp)Connections: 1x DMX XLR-3Pol-In (for connection to standard DMX control device/DrivePort Control SW)1x DMX/Safety Out XLR-5PolTechnical data:
Lastmesszelle 2,5 KN, Selbsttestfunktion, Ausgangssignal 4...20mA, inkl. 1m Anschlusskabel mit 4 Pol XLR Stecker maleWeitere Größen auf Anfrage Spezifische Merkmale: Zug-/Druckkraftaufnehmer mit integriertem Verstärker Nennlast: bis 2,5 kN relative Linearitätsabweichung: 0,50% Fnom Ausgangssignal: 4...20mA, 2-L, integriert Kontrollsignal: Signalhub/mA 4...16 mA Sprung 4 mA ± 0,2 mA Schäkelbauform zur einfachen Nachrüstung Technische Daten:
RackPortMain1 - Versatile 1U MiniServer for System Monitoring and MoreThe RackPortMain1 is a compact 1U MiniServer, perfect for use as a central unit for Watchdog system monitoring. Featuring a freely configurable Raspberry Pi 5 web server on a Linux basis, it offers countless application possibilities. Use it to display WiFi power monitors, load cells, or any other external applications that respond to threshold exceedances or timers.Thanks to the open operating system and the powerful Raspberry Pi 5, the possibilities are virtually limitless.Key Features:Raspberry Pi 5: Open Linux system as a foundation with pre-installed Docker containersHomeAssistantNode-RedInfluxDBMosquittoExtensive Communication Options: Web server, MQTT, ModBus, HTML, Bluetooth, etc.High Operational Stability: SSD (Solid State Drive) for enhanced stabilityPowerful Hardware:25W power supply via GPIO portInternal 8-port 1Gbit switchVersatile Connectivity:1x Powercon True1 In1x Powercon True1 Out7x Ethernet (6x Front, 1x Rear)3x USB2x HDMI2x Extension ports for custom purposes like DMX or GPIOsTechnical Specifications:ARM Cortex 2.4GHz8GB RAM128GB SSD230VAC, 30WAdditional Resources:Find links to installation scripts and templates here:WatchDog (current, voltage, power, CosPhi…)Load cellsTemperature sensorsWind sensors User-Manual-Rigport-StagePort_de_V0-1User_Manual_WatchDog
...I consider the devices to be a very innovative solution for dealing with motors, which are particularly suitable for complex systems that are statically indeterminate.
