RigSwitch8x
Product number:
0359010
Product information "RigSwitch8x"
The RigSwitch8x
is a managed 8-way Ethernet 1GBit distributor for the truss, suitable as a central star distribution for many devices in a confined space.

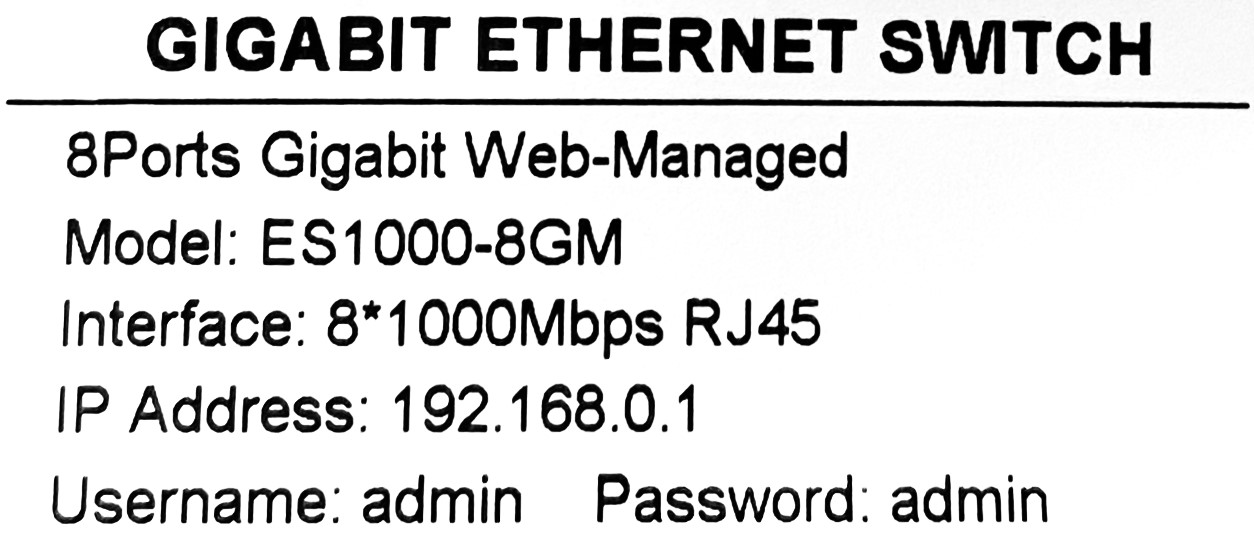

- Web managed (IP Address: 192.168.0.1 [admin/admin])
- 1x Powercon-True1-In
- 1x Powercon-True1-Out
- 8x Ethercon-Out (with rubber protective cap)
- IP54
- M10 screw mount for attaching couplers, trigger clamps, etc.
- 2xM4 receptacle for RPL clamps
- Support-
-portbased QOS, quality of service, higher priority traffic experiences less delay than lower priority traffic under congested conditions
-IEEE 802.1p Qos ,TOS/DSCP Qos
-port trunking/aggregation
-rate control, broadcast storm suppression
-port flow control
-port mirror
-IGMP Snooping V1/V2, MLD snooping
-IEEE802.1X based port security
-loop detection, loop prevention
-Dos attack prevention
-configure port speed, status -SNMP,web GUI, CLI management -mac list,mac search
SPECIFICATION |
| Interface | 8*10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX | |||
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p | |||
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) | |||
| Power Consumption | Maximum: 4.48W (220V/50Hz) | |||
PERFORMANCE
| Switching Capacity Packet Forwarding Rate | 16Gbps 11.9Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 15KB |
SOFTWARE FEATURES
| Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping Supports 128 Groups Supports static link aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
OTHERS
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
