RigSwitch8x

Produktinformationen "RigSwitch8x"

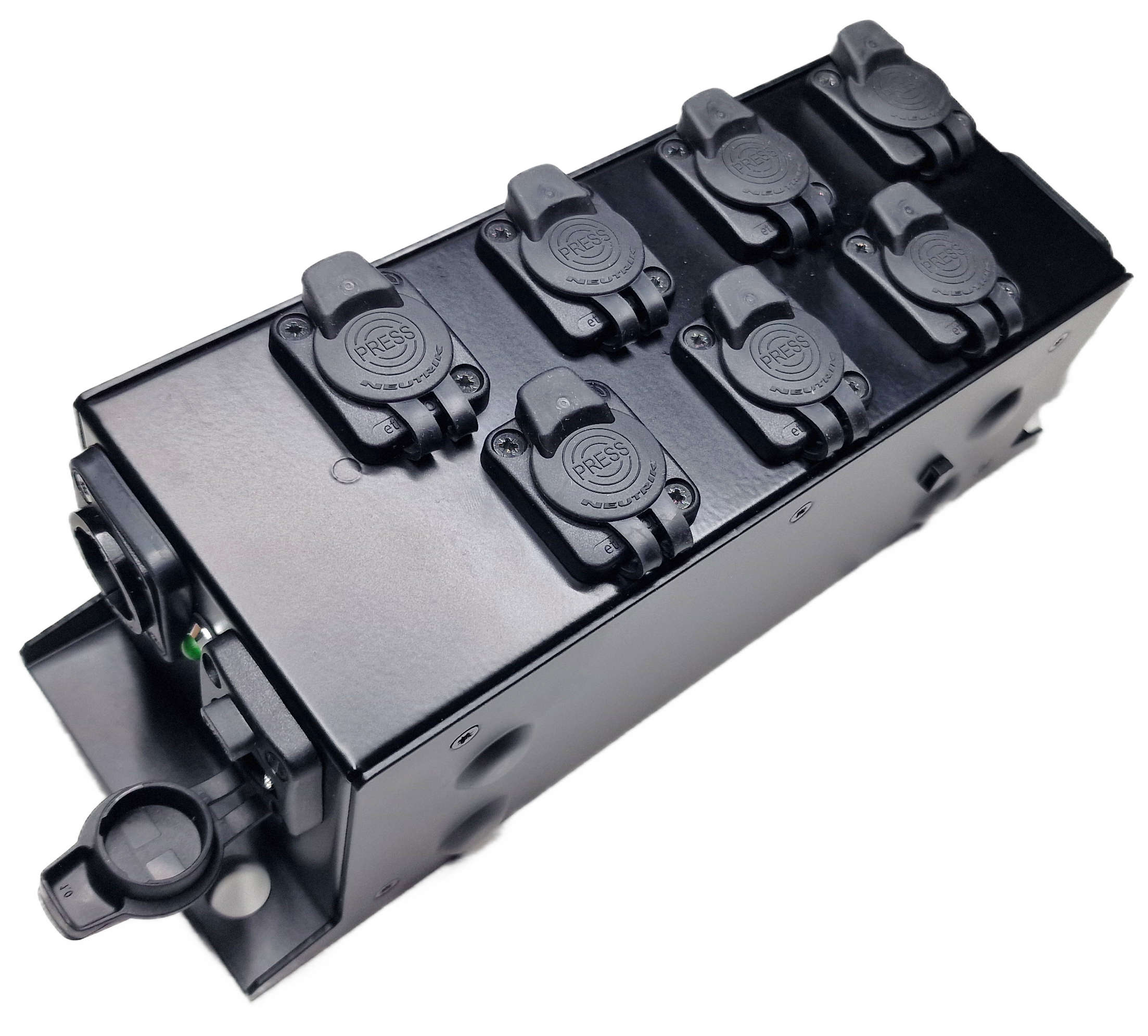

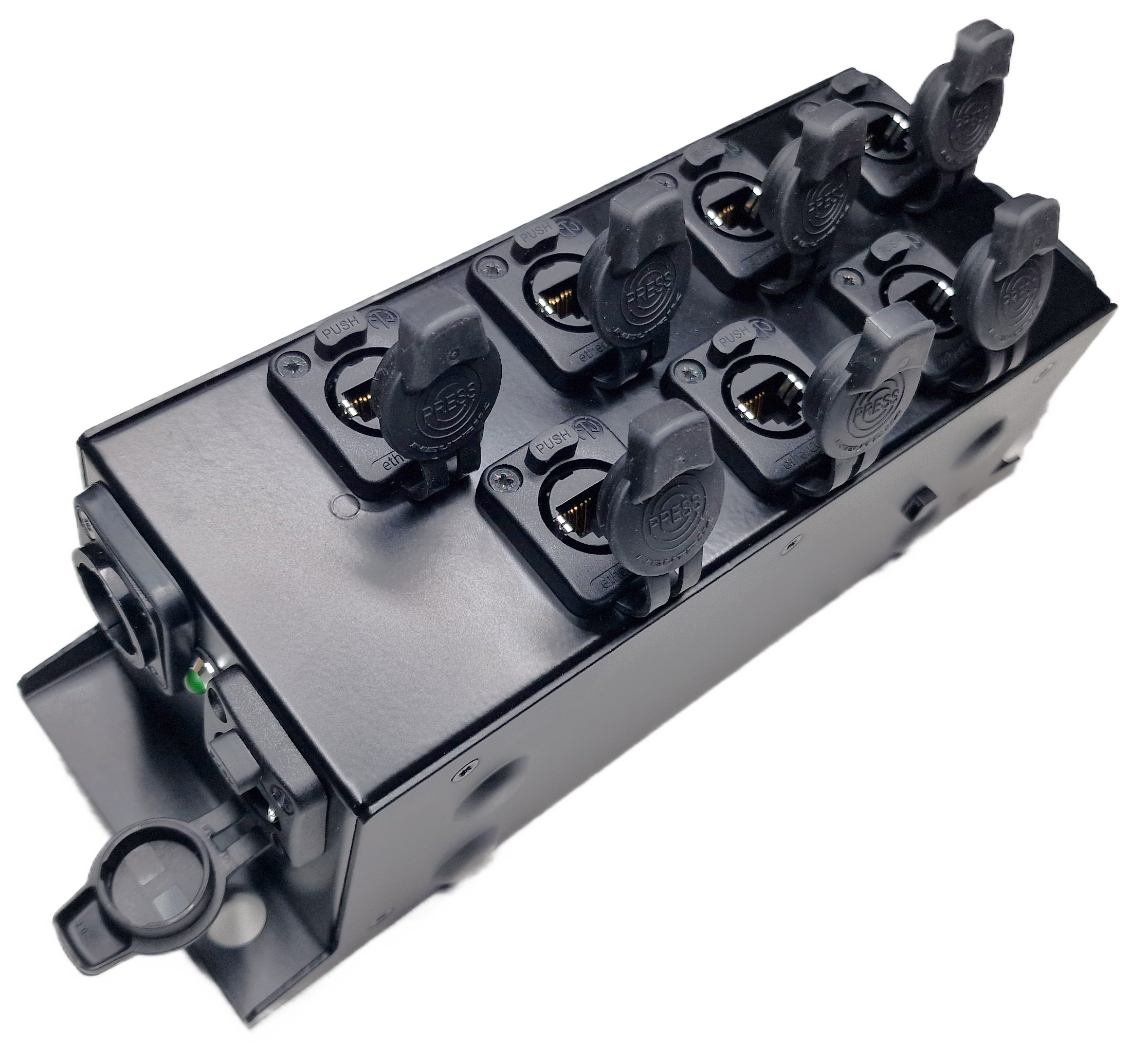

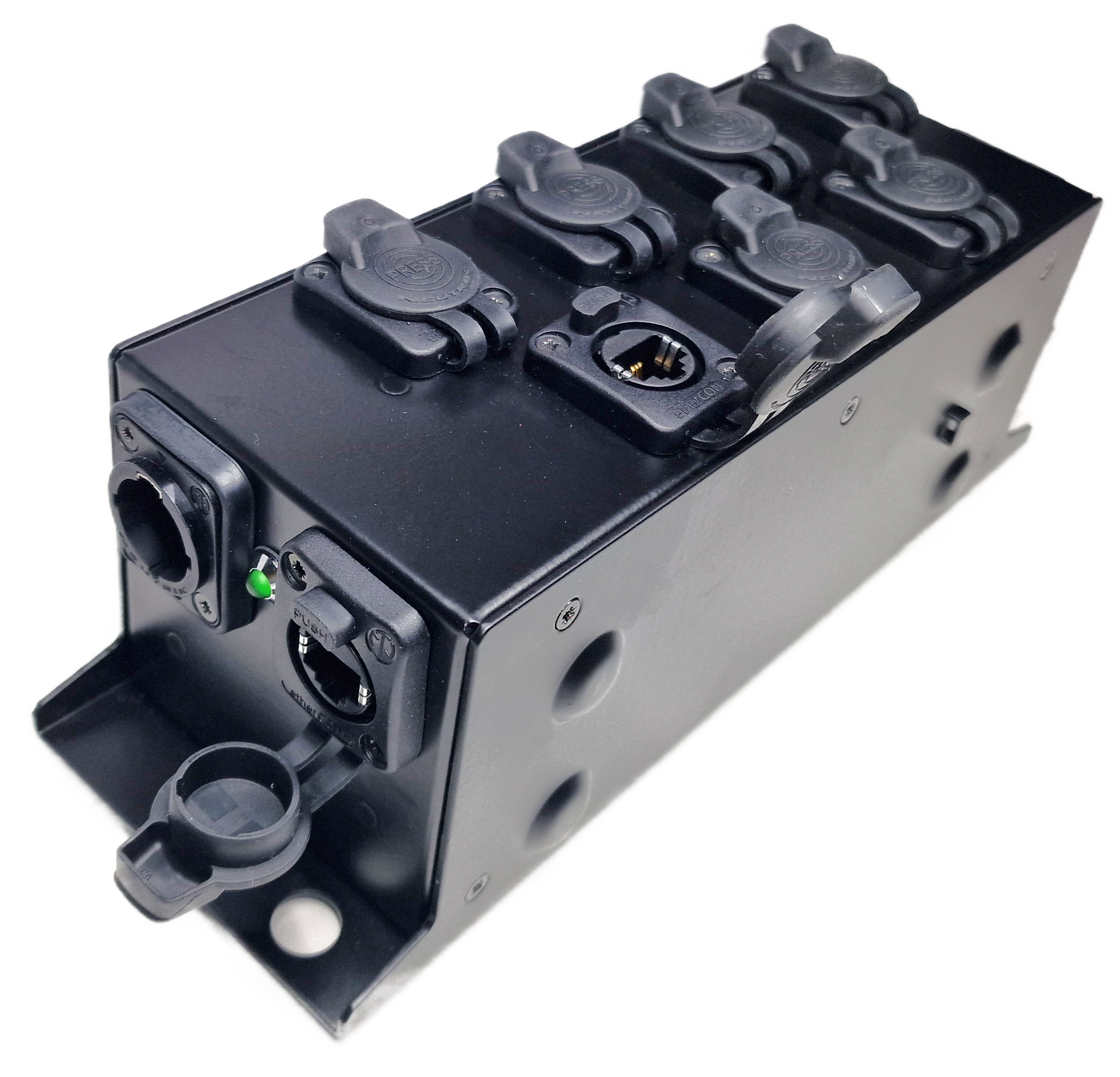

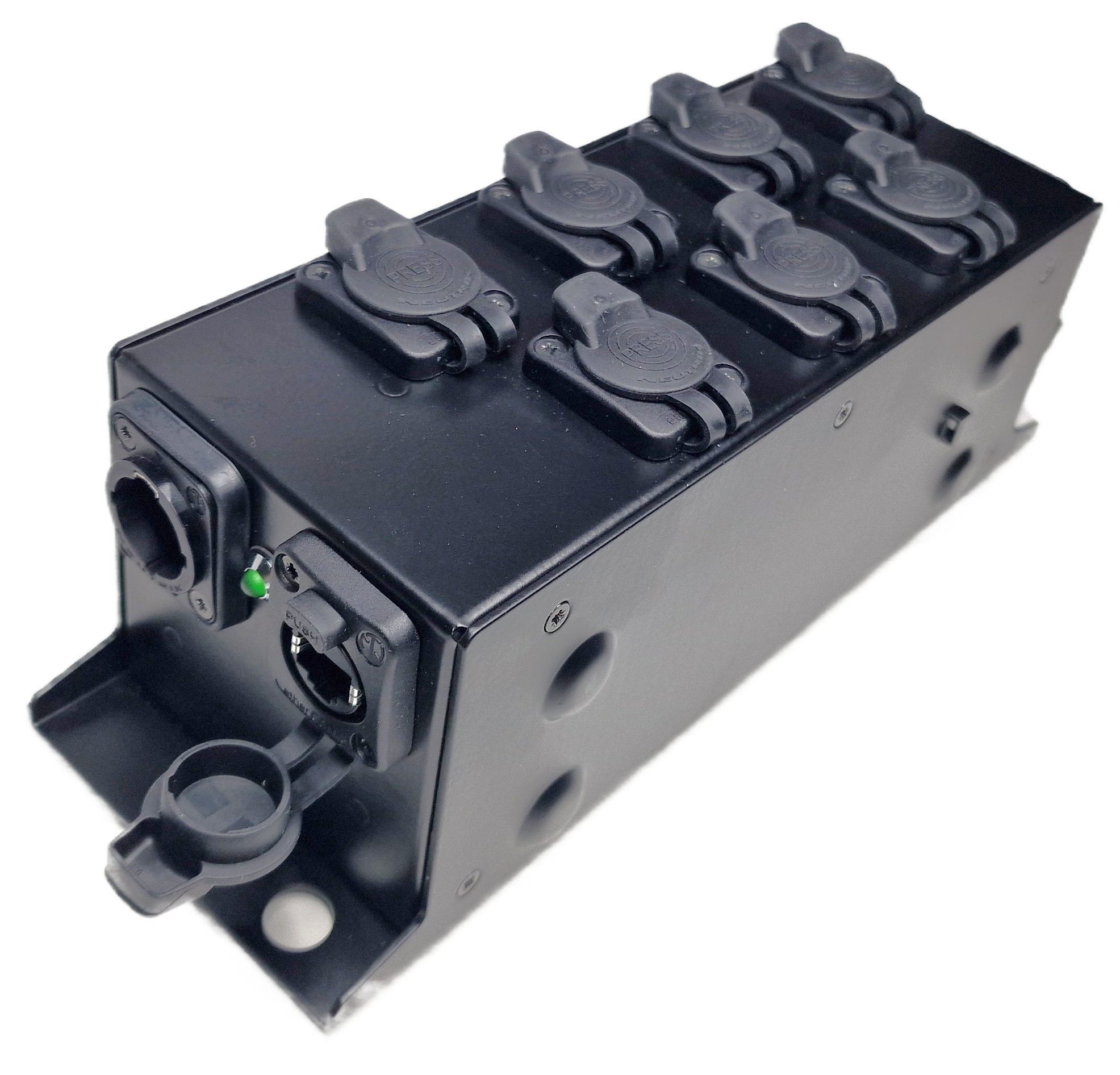

Der RigSwitch8x

ist ein 8-fach, Web managed, Ethernet 1GBit Verteiler für die Traverse, geeignet als zentrale Sternverteilung für viele Geräte auf naheliegendem Raum
  • Web Managed (IP Adresse: 192.168.0.1 [admin/admin])

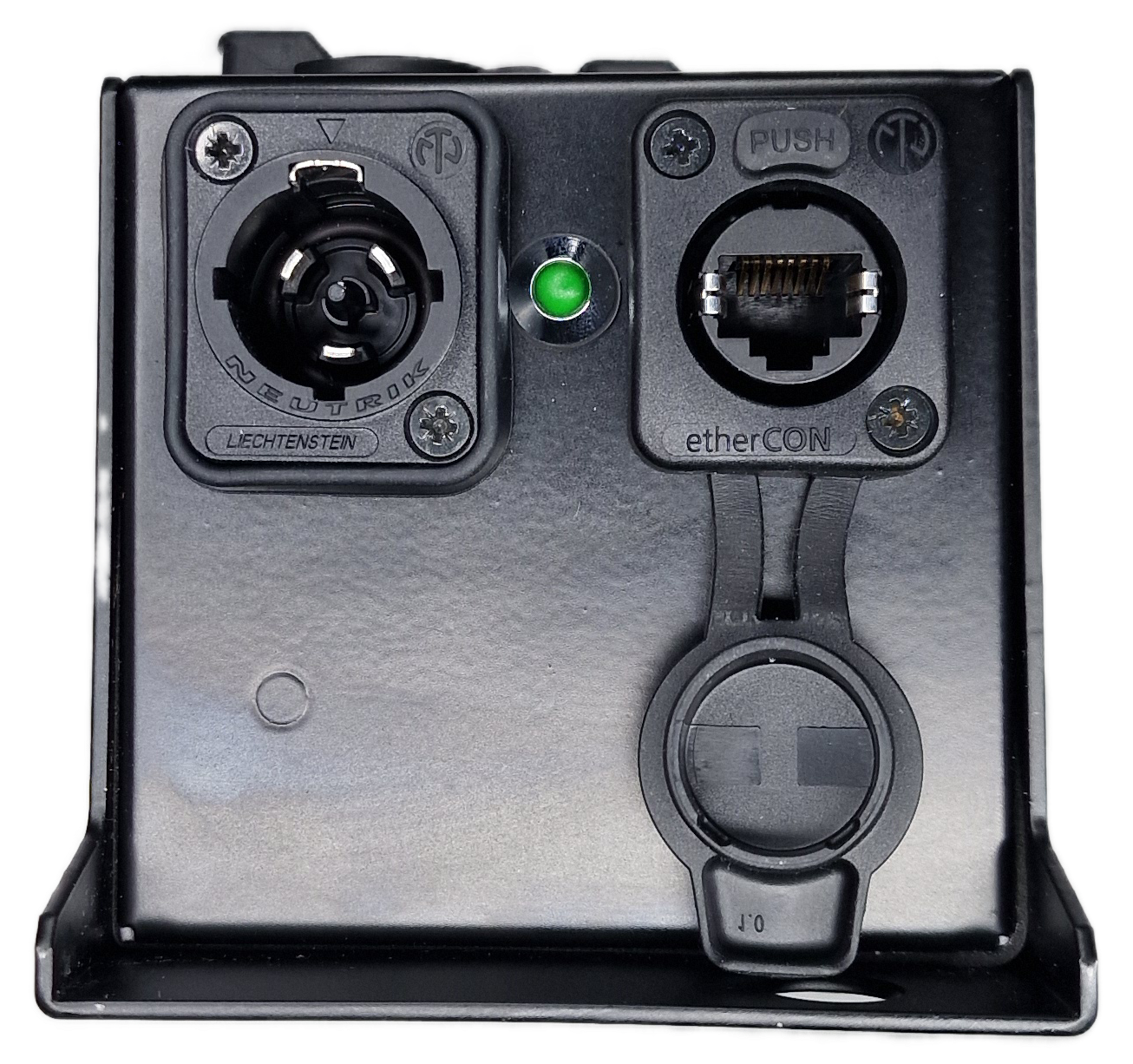

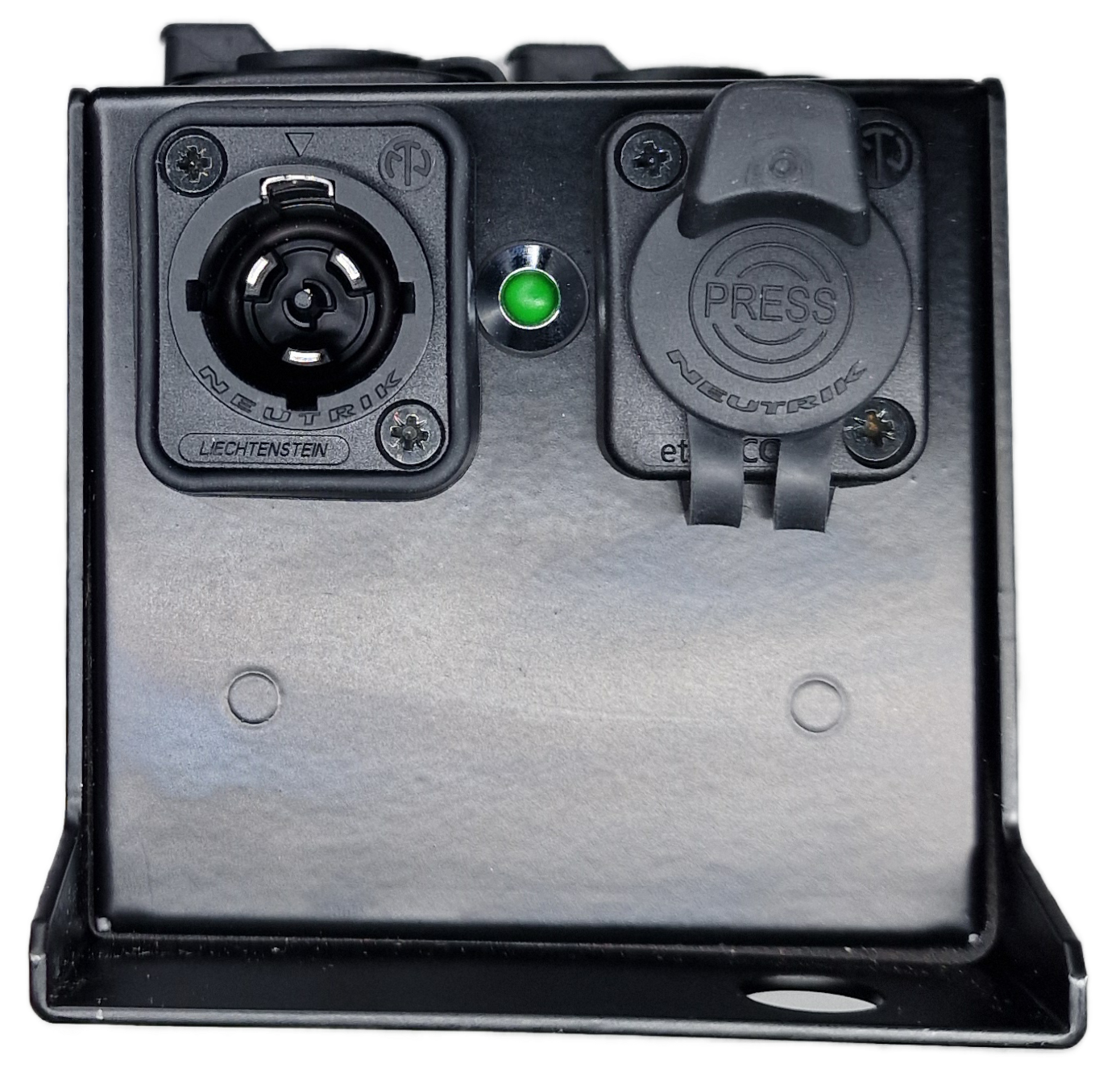

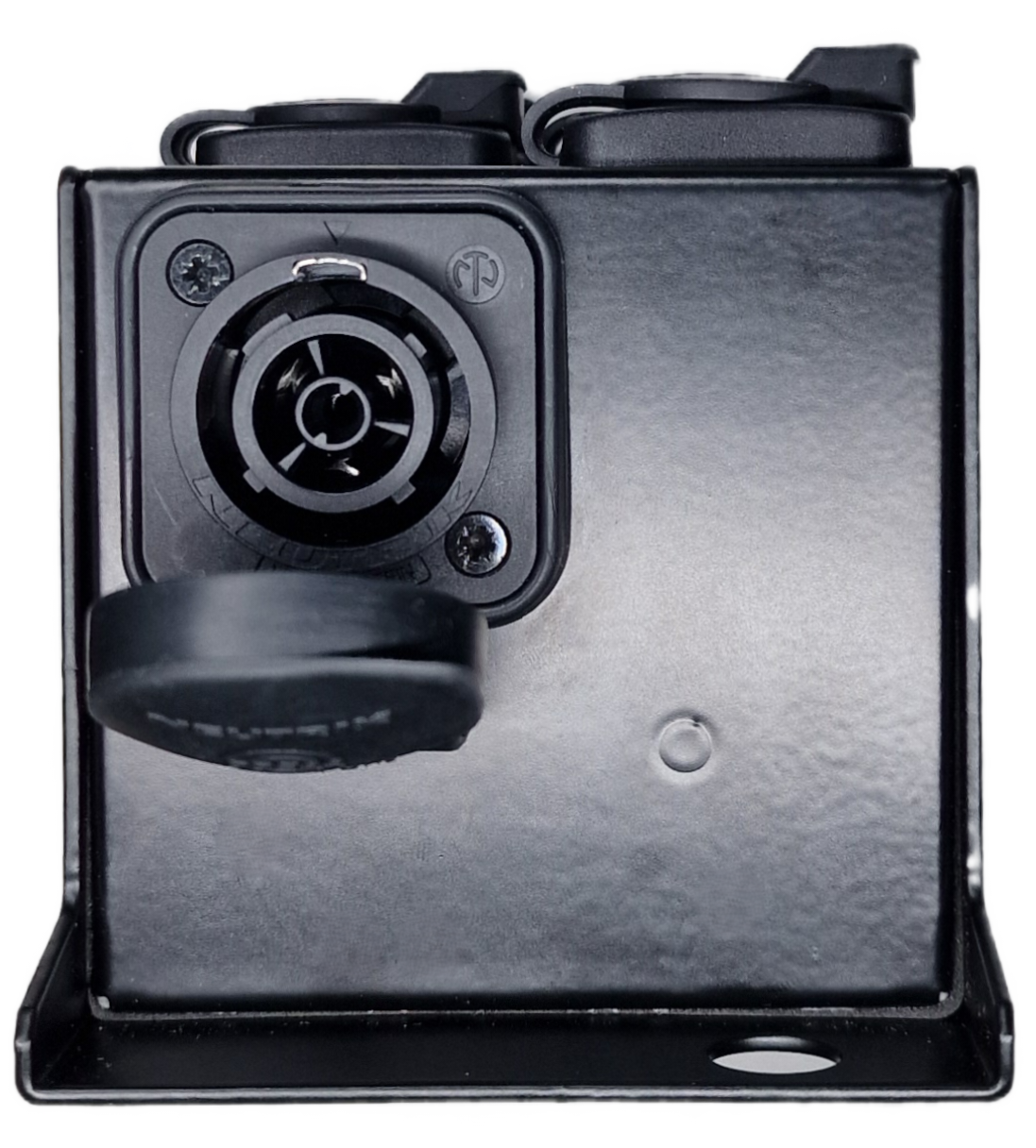

  • 1x Powercon-True1-In

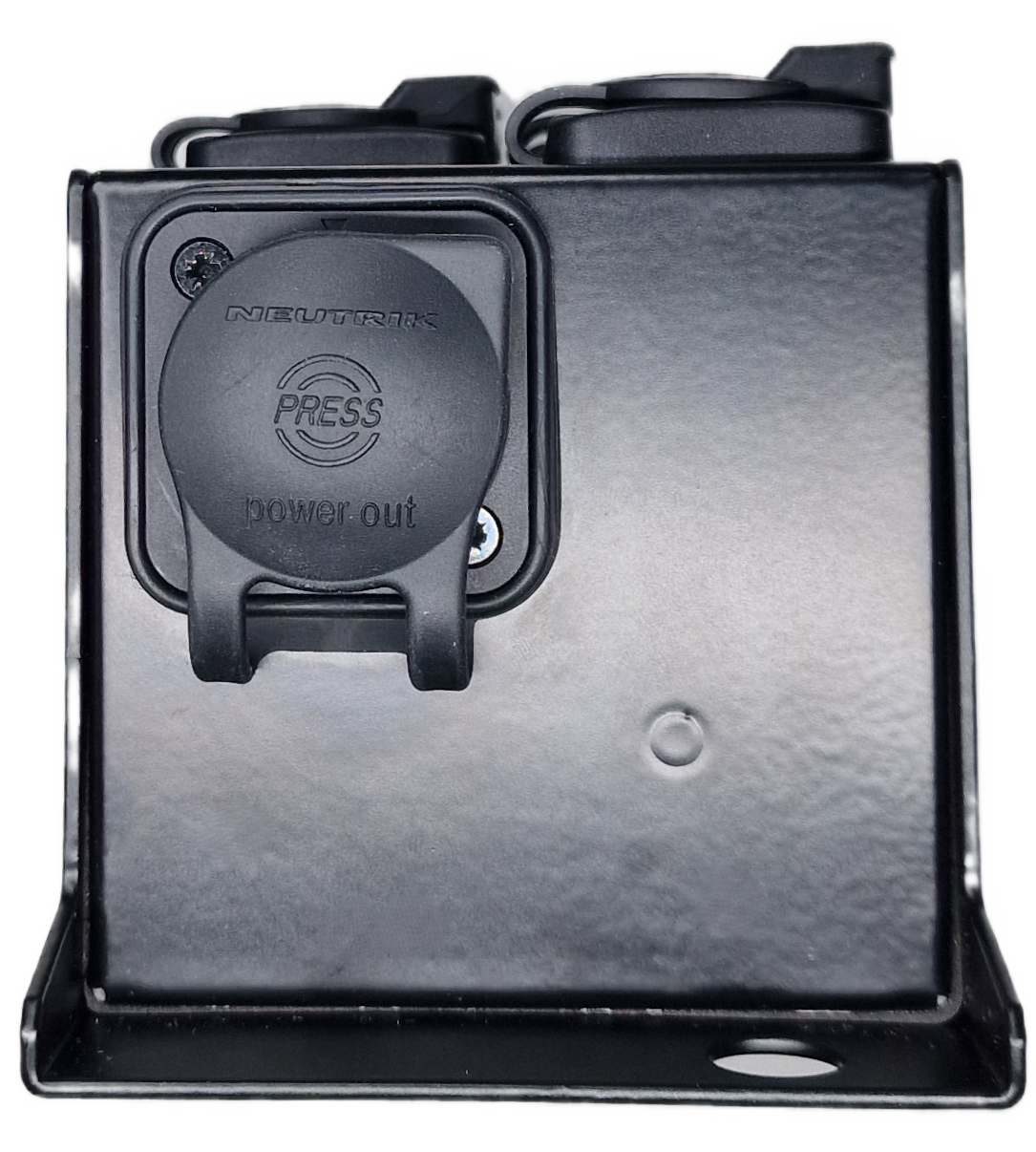

  • 1x Powercon-True1-Out

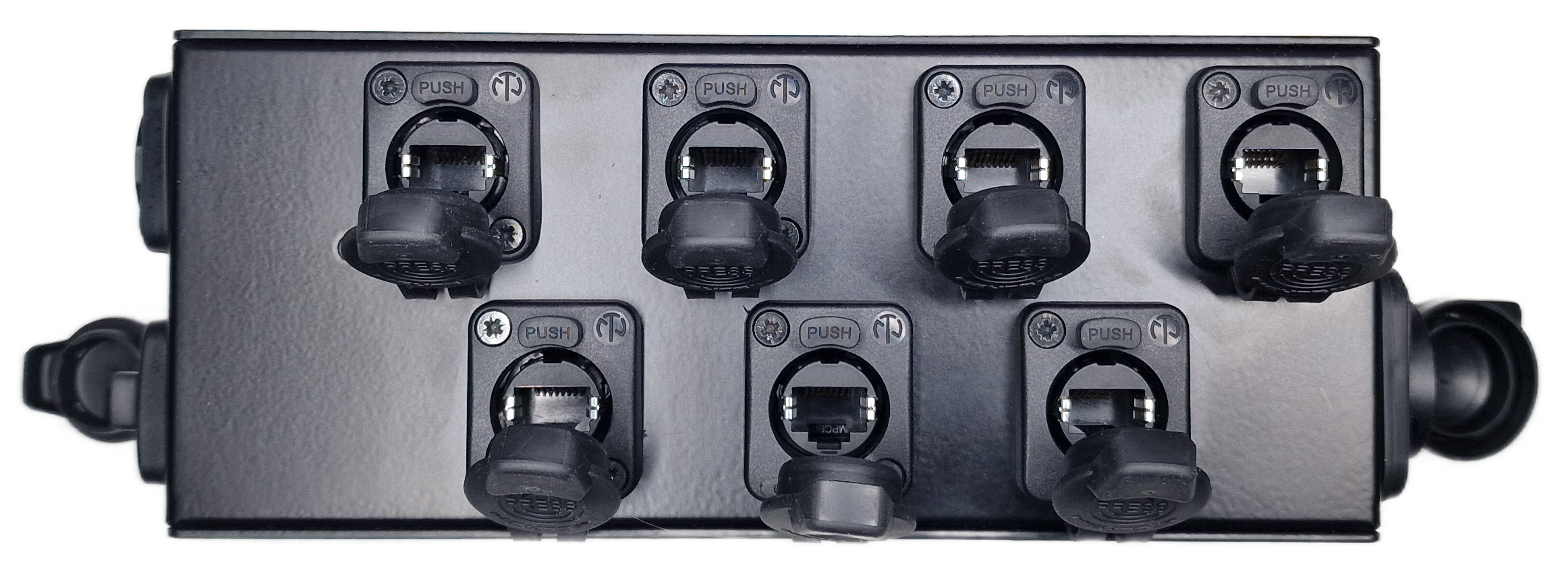

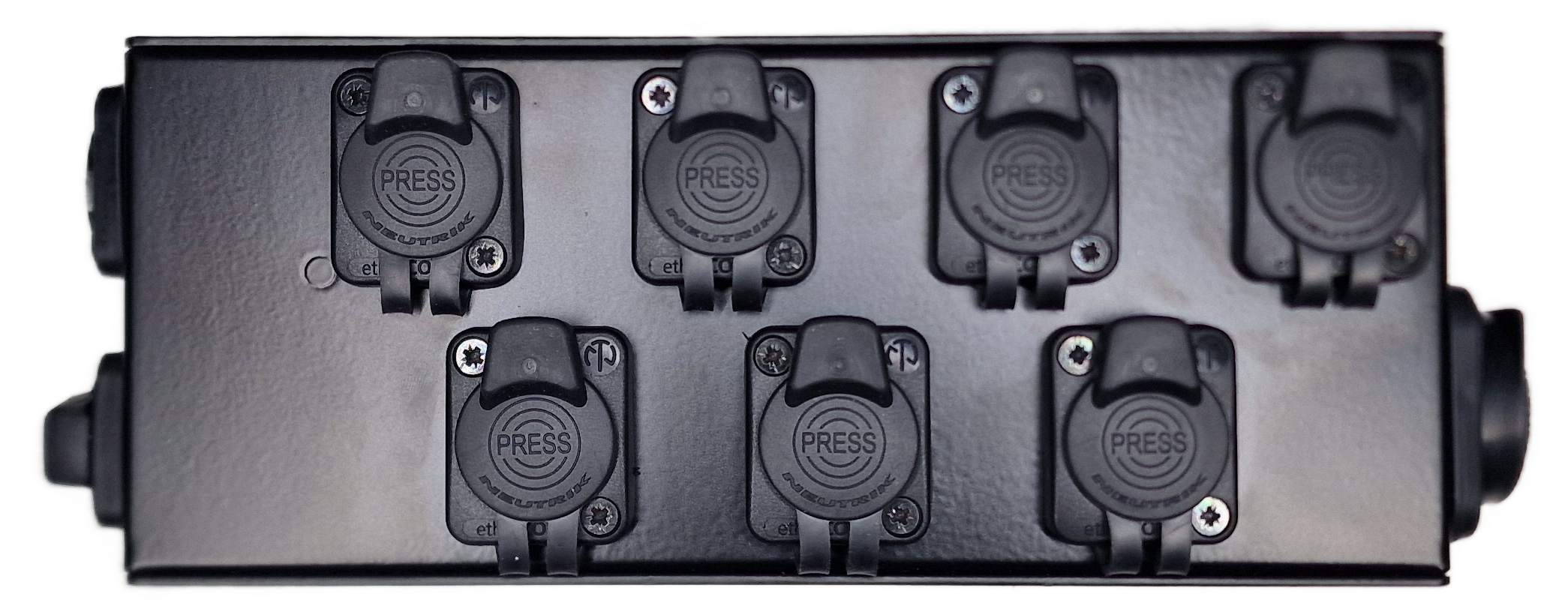

  • 8x Ethercon-Out (mit Gummischutzkappe)
  • IP54

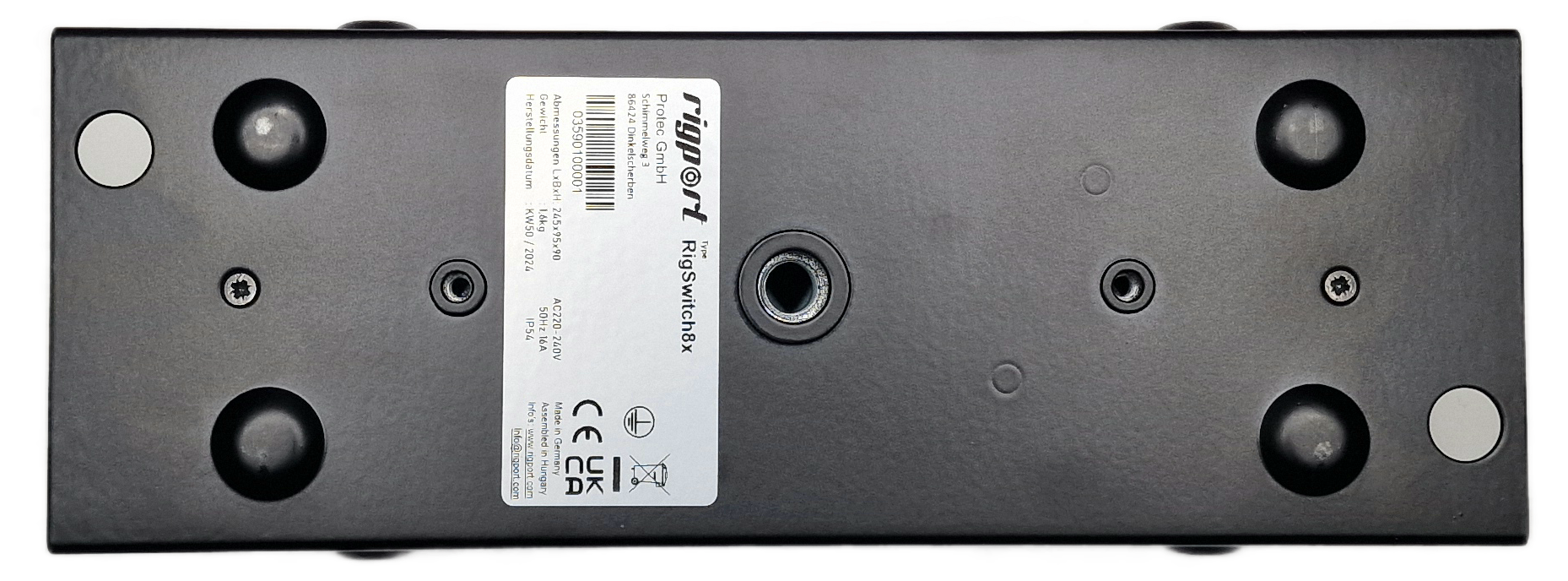

  • M10 Schraubaufnahme zur Befestigung von Coupler, Triggerclamps o.ä.
  • 2xM4 Aufnahme für RPL Clamps

  • 8 10/100/1000Mbps ports provide instant large file transfers
  • Support-
    -portbased QOS, quality of service, higher priority traffic experiences less delay than lower priority traffic under congested conditions
    -IEEE 802.1p Qos ,TOS/DSCP Qos
    -port trunking/aggregation
    -rate control, broadcast storm suppression
    -port flow control
    -port mirror
    -IGMP Snooping V1/V2, MLD snooping
    -IEEE802.1X based port security
    -loop detection, loop prevention
    -Dos attack prevention
    -configure port speed, status
    -SNMP,web GUI, CLI management
    -mac list,mac search

SPECIFICATION

Interface
8*10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Power ConsumptionMaximum: 4.48W (220V/50Hz)

PERFORMANCE
Switching Capacity
Packet Forwarding Rate
16Gbps
11.9Mpps
MAC Address Table4K
Packet Buffer Memory1.5Mb
Jumbo Frame15KB

SOFTWARE FEATURES
Quality of ServiceSupport Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 FeaturesIGMP Snooping
Supports 128 Groups
Supports static link aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLANSupports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission MethodStore-And-Forward

OTHERS
System Requirements
Microsoft® Windows® for running Utility
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

0 von 0 Bewertungen

Durchschnittliche Bewertung von 0 von 5 Sternen

Bewerten Sie dieses Produkt!

Teilen Sie Ihre Erfahrungen mit anderen Kunden.


EAN
4260722352214
